Vertical Stabilizer Assembly
55-10 Is the Code for the Vertical Stabilizer Assembly.
We have been updating the builder database with new drawings. These are the most current drawings available to the builders. However, it is important that you recognize that only the drawings that are contained within the builder database are updated. Any changes to the drawings occur only on the drawings that show up within the builders database. To have access to all of the builder database you need to become a EMG-6 member and receive a serial number.
To find out more about becoming an EMG-6 builder and member and get started on building your own aircraft. Click here

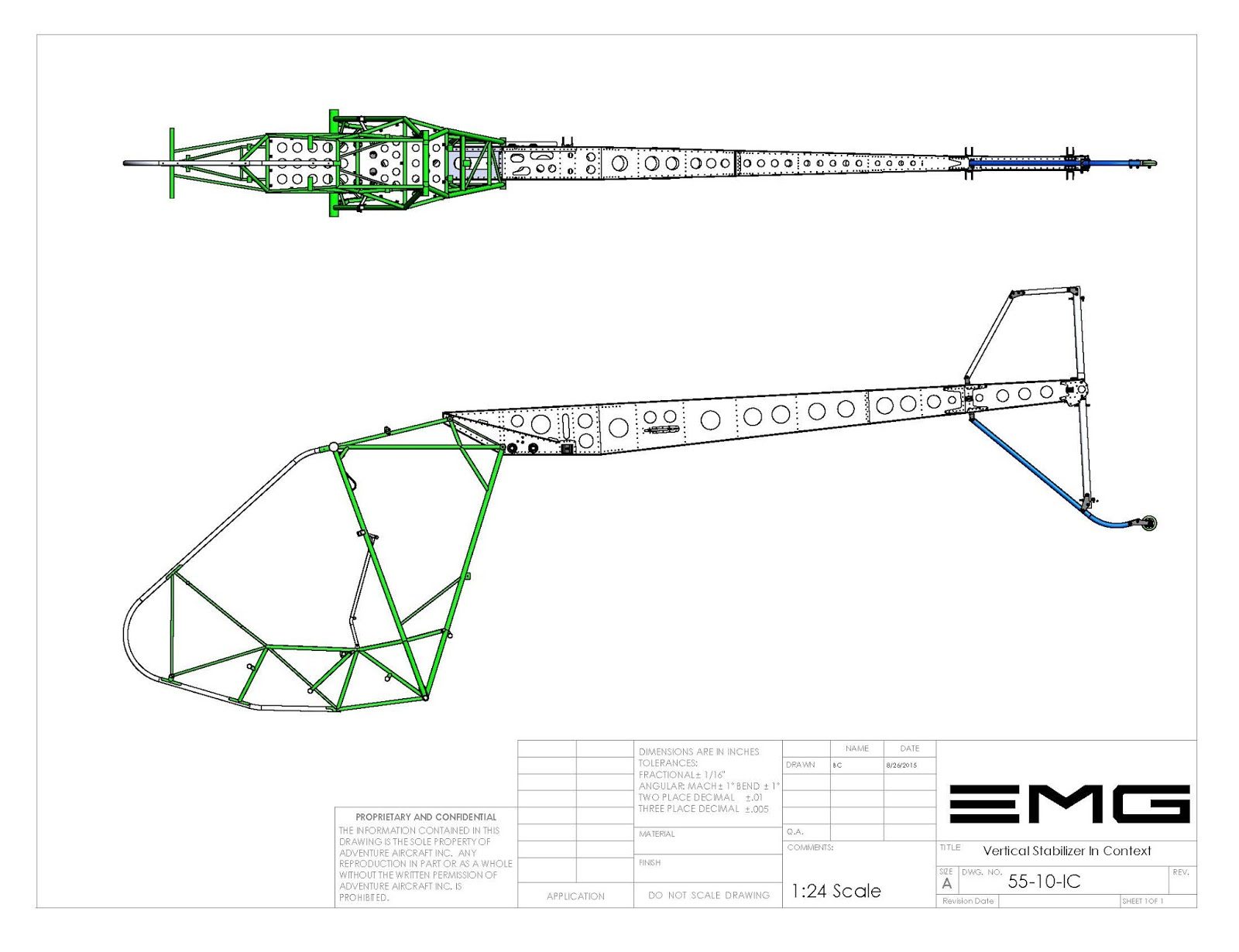

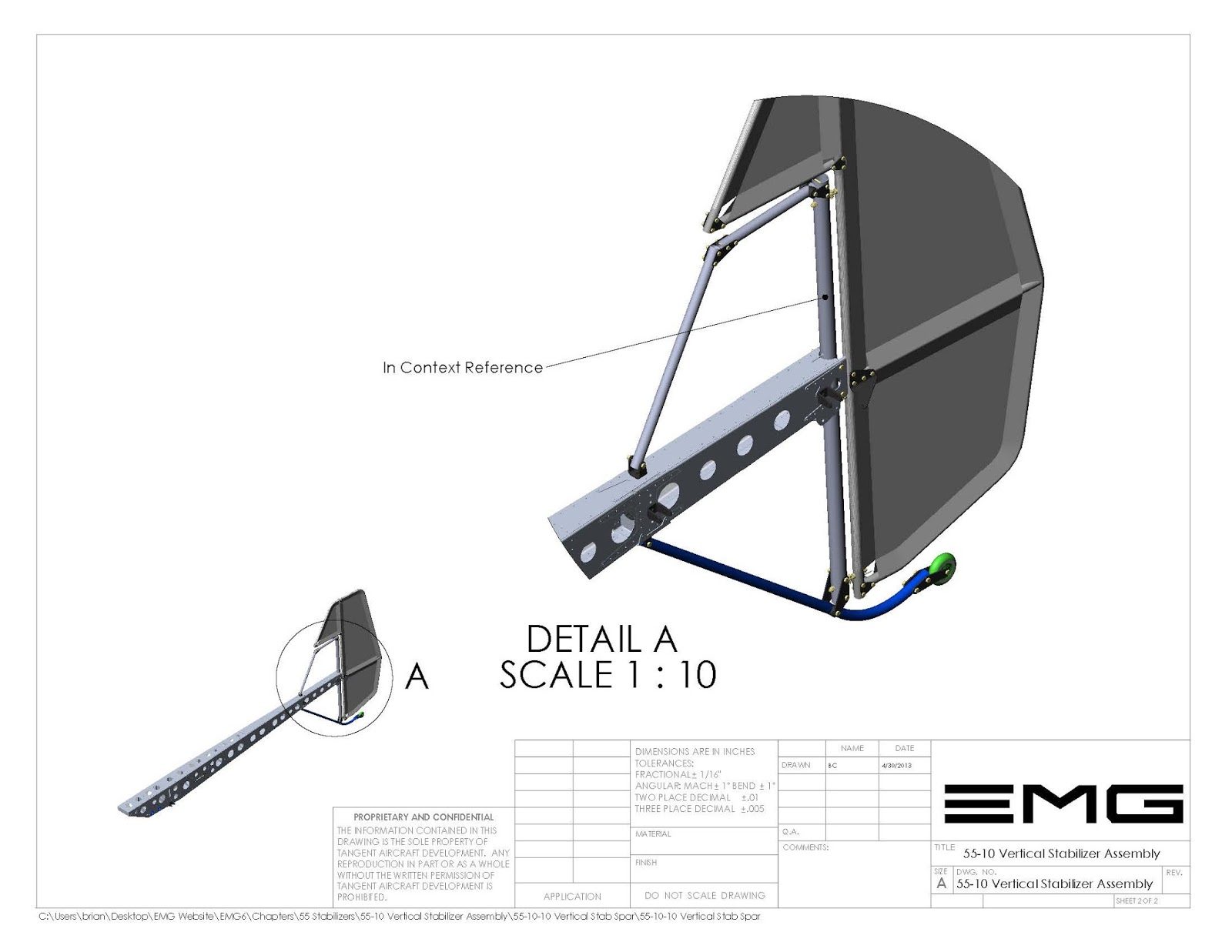

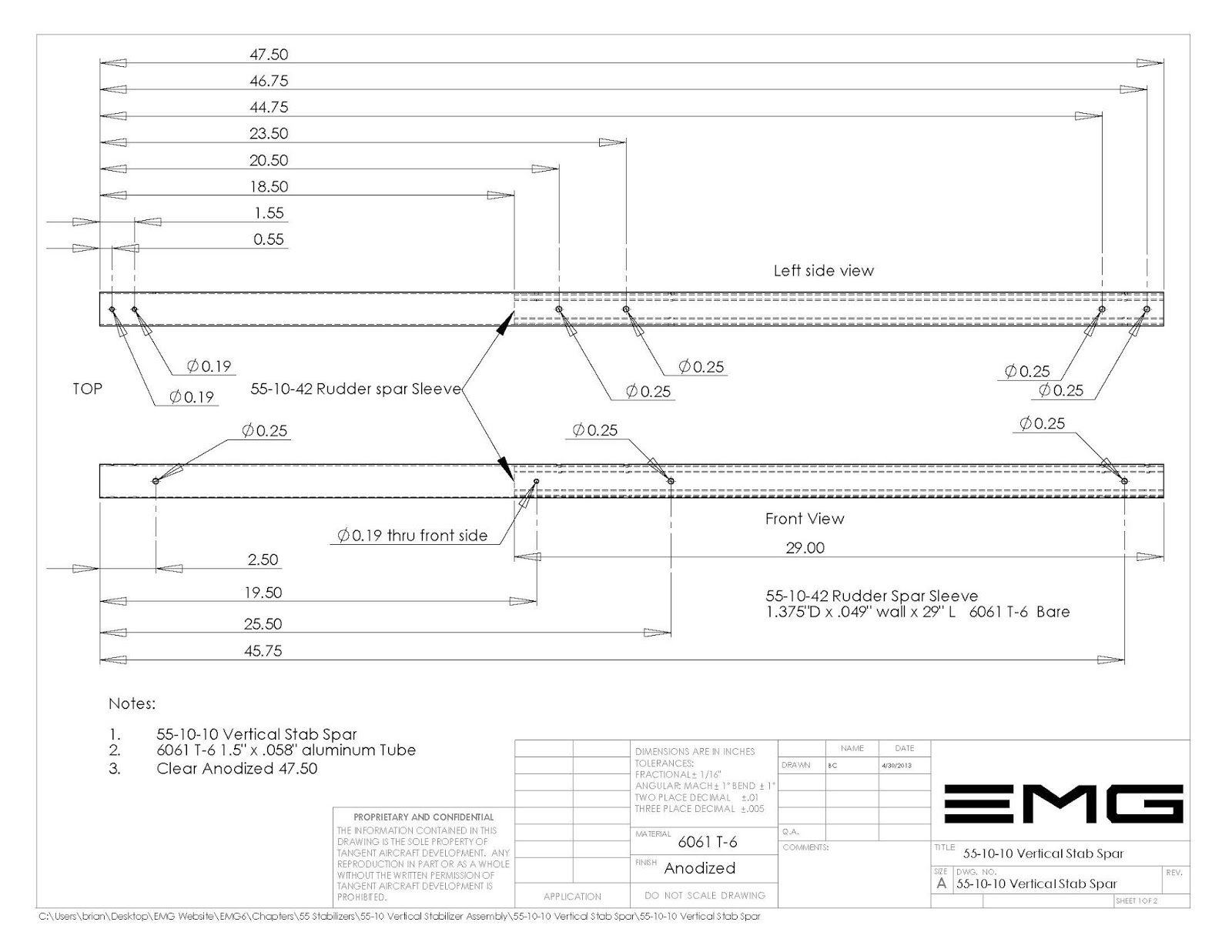

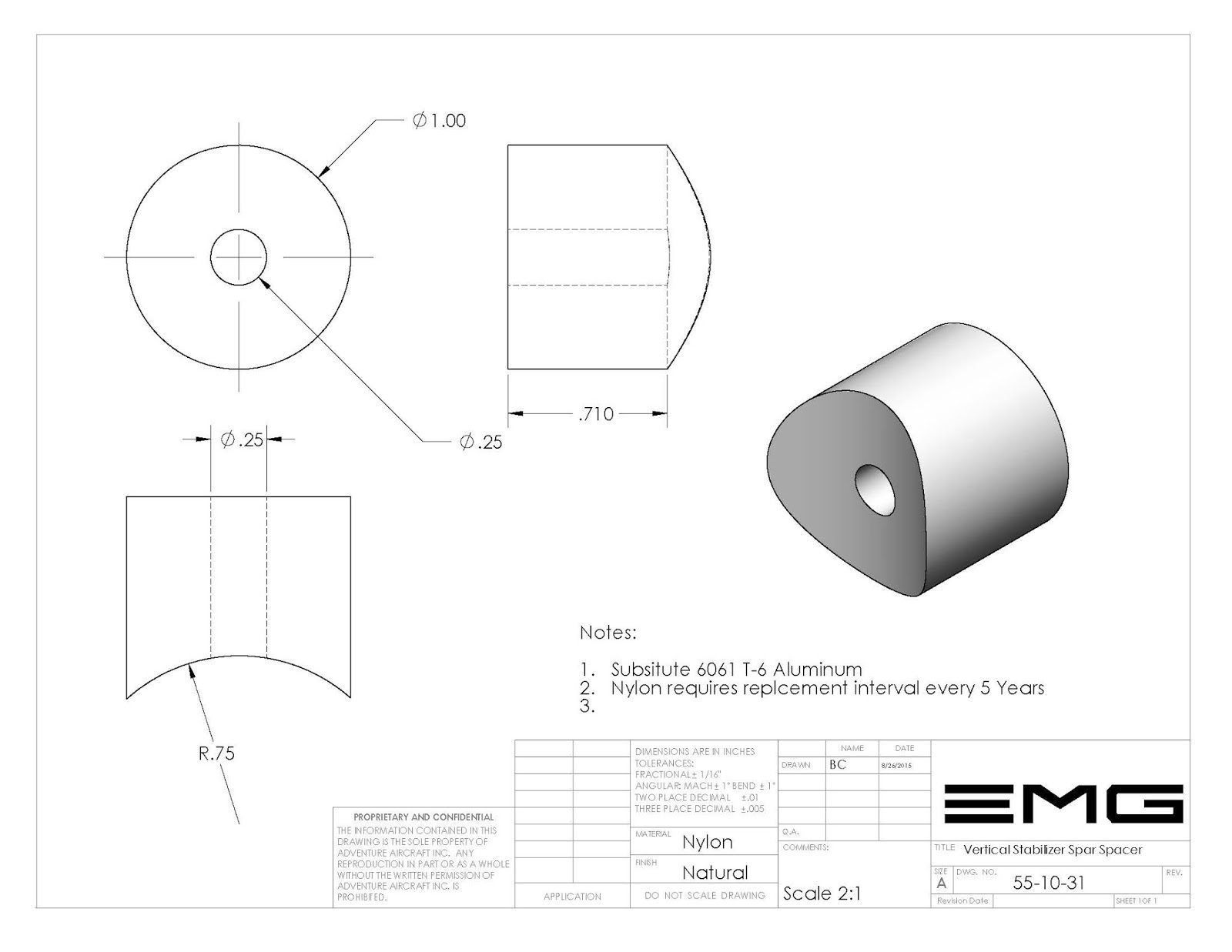

55-10-10 vertical stabilizer spar
You can click on any of the drawings to the right to enlarge for a better look.

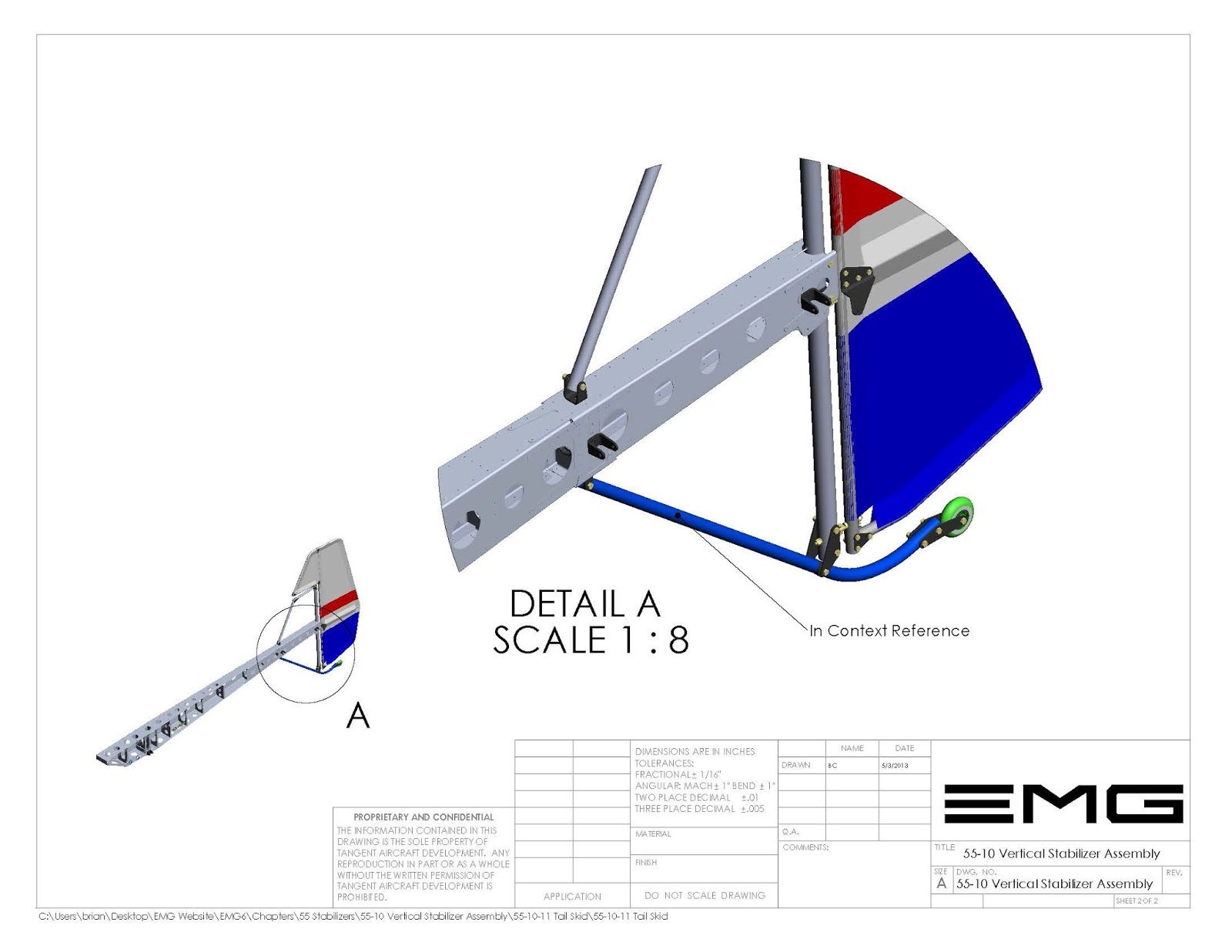

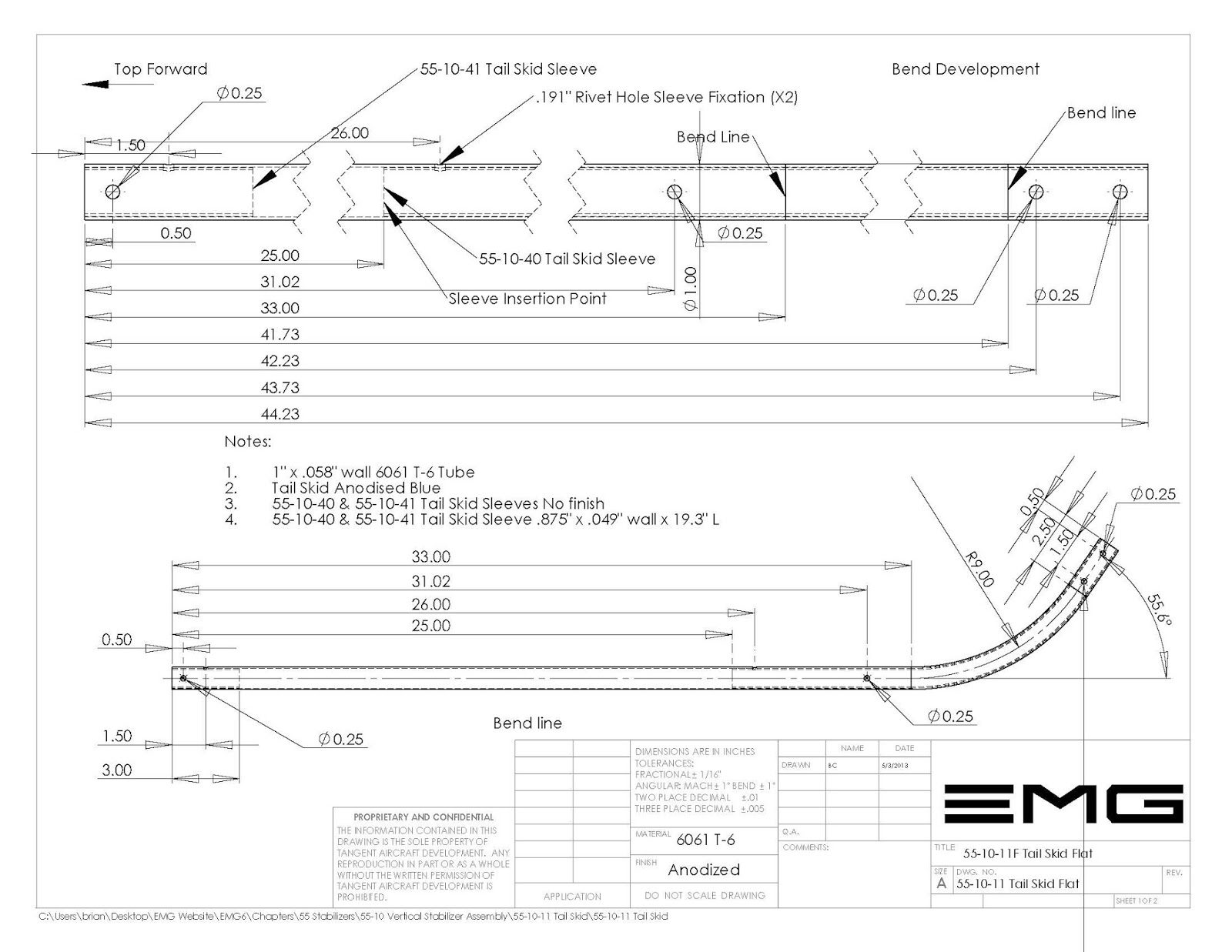

55-10-11 Tail Skid
The tail skid is an integral part of the vertical stabilizer assembly. The tail skid can be configured as simply a skid or a single glider will or with these Steerable tail wheel option.

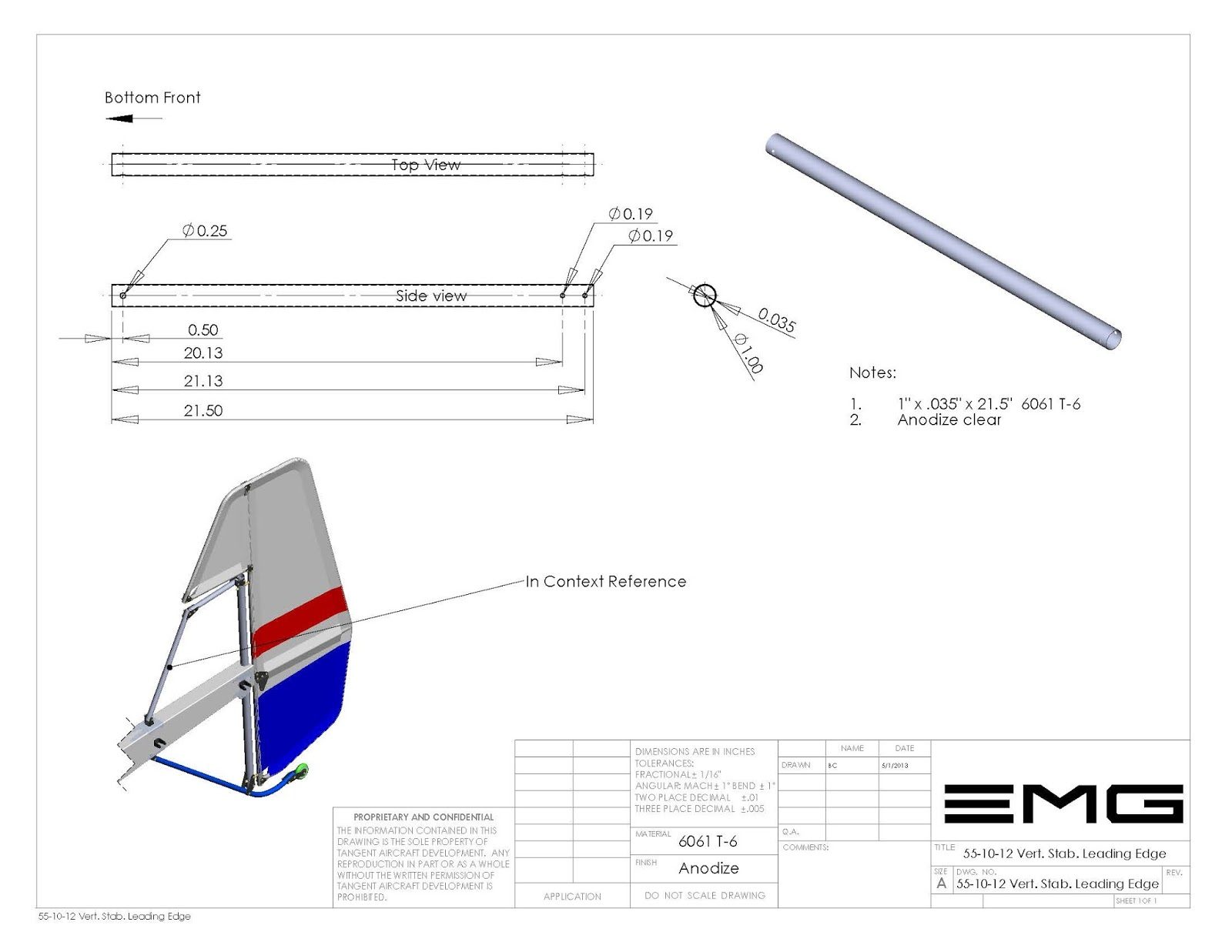

55-10-12 Vertical Stabilizer Leading Edge

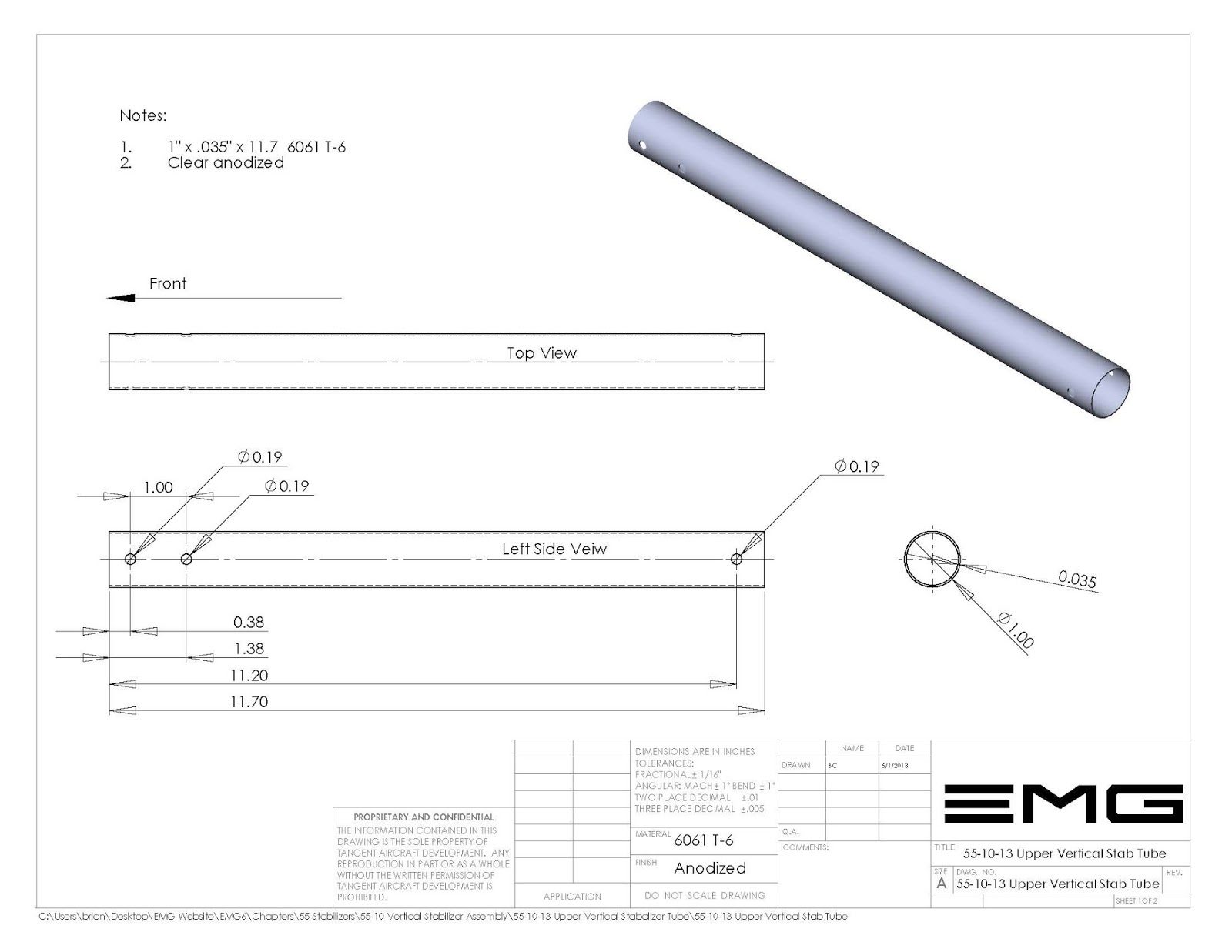

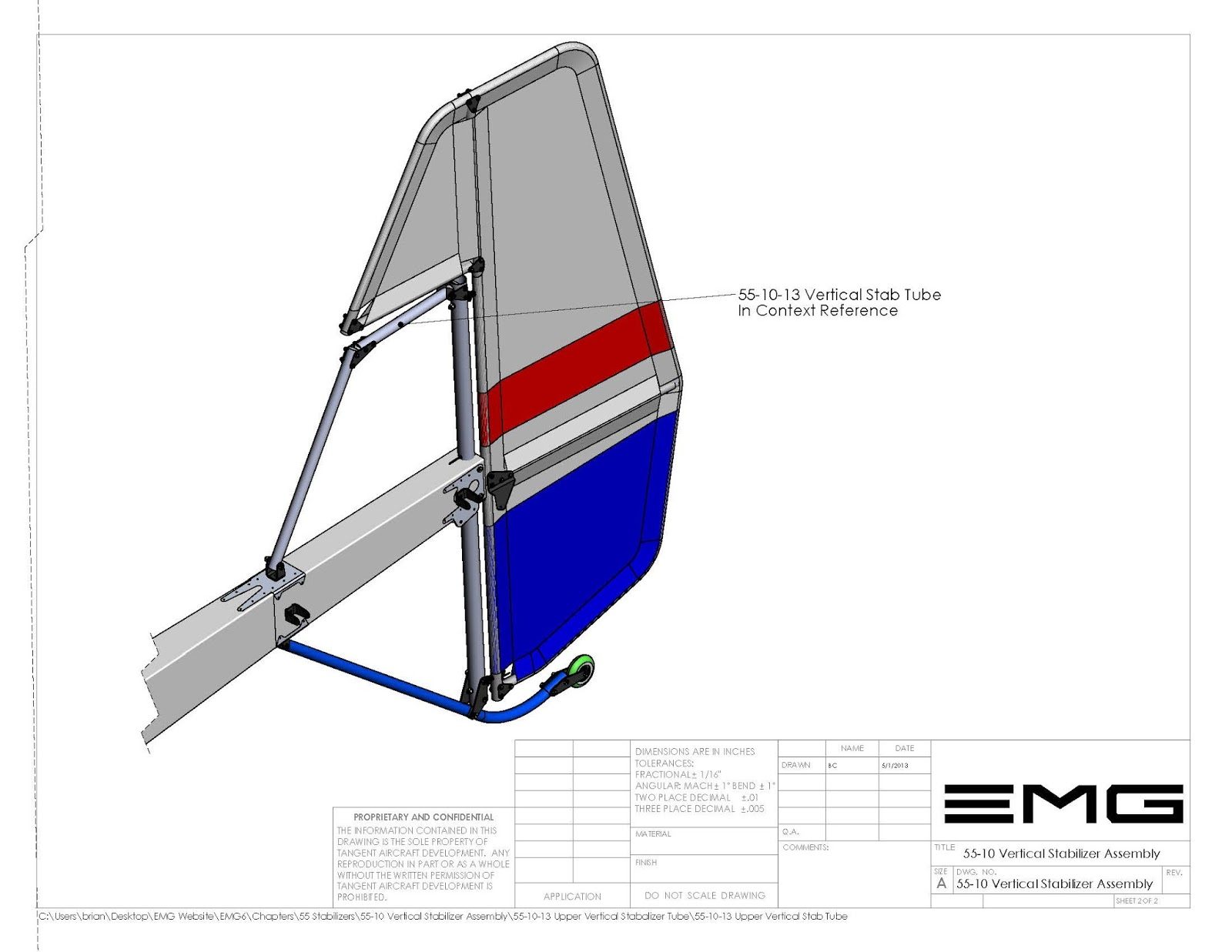

55-10-13 Upper Vertical Stab Tube

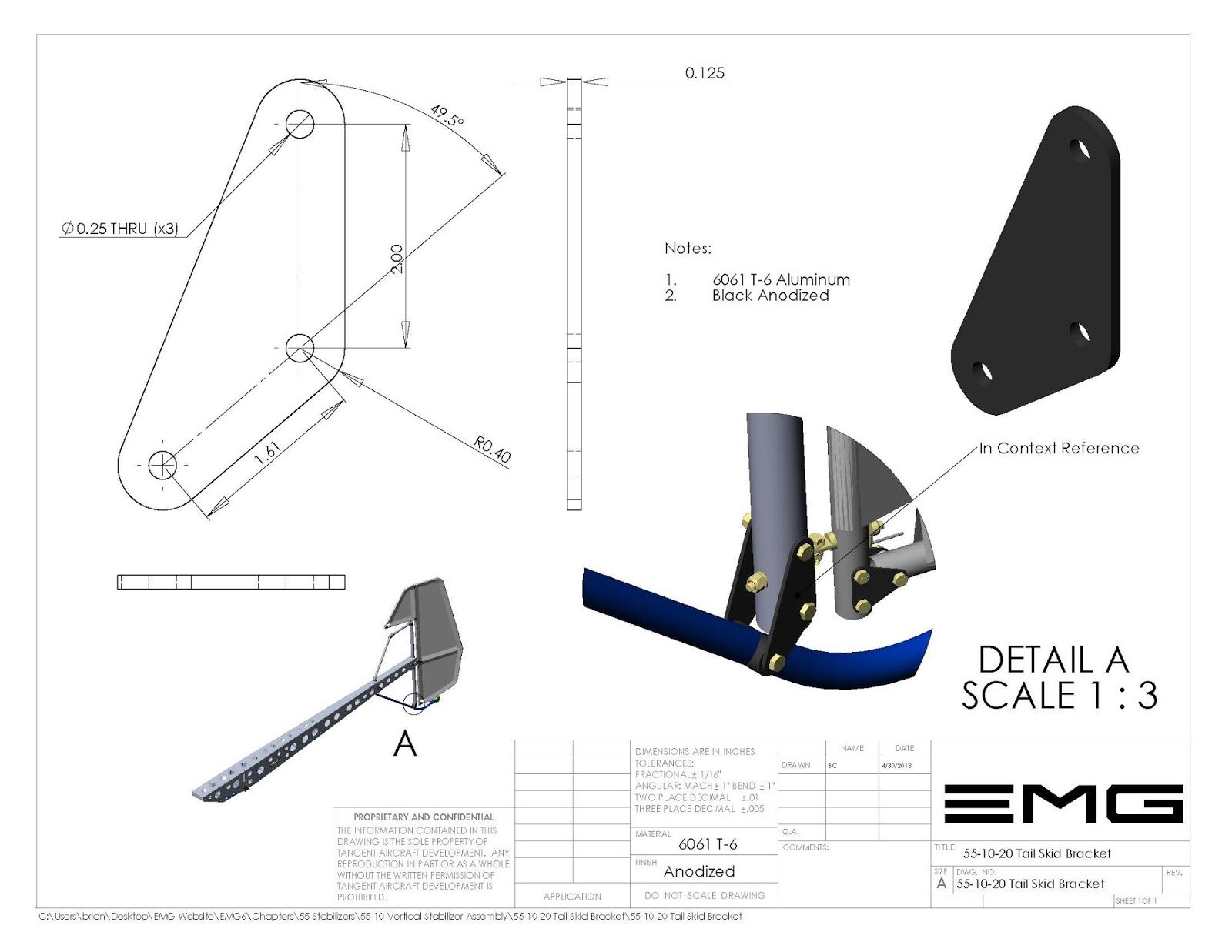

55-10-20 Tail Skid Bracket

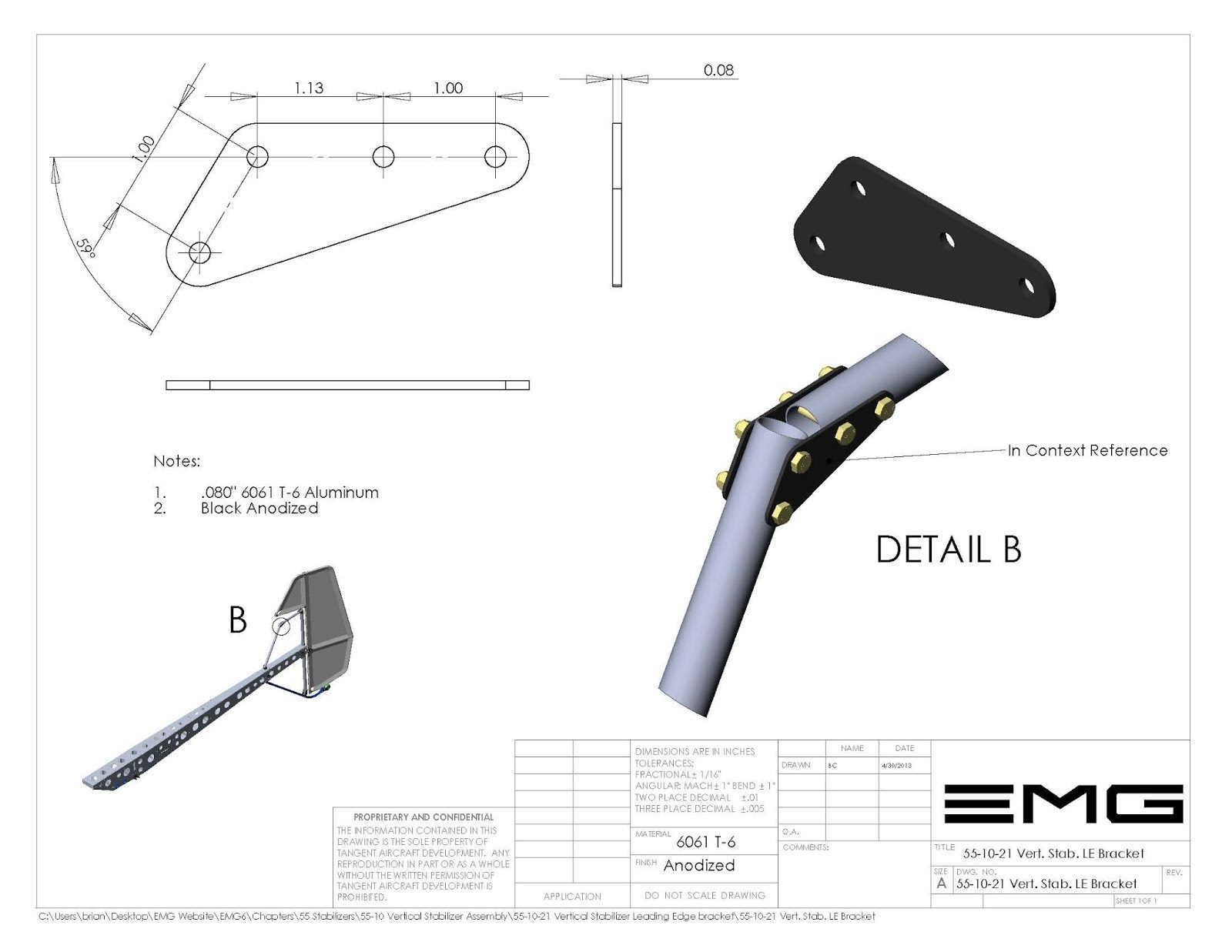

55-10-21 Vertical Stabilizer Leading Edge bracket

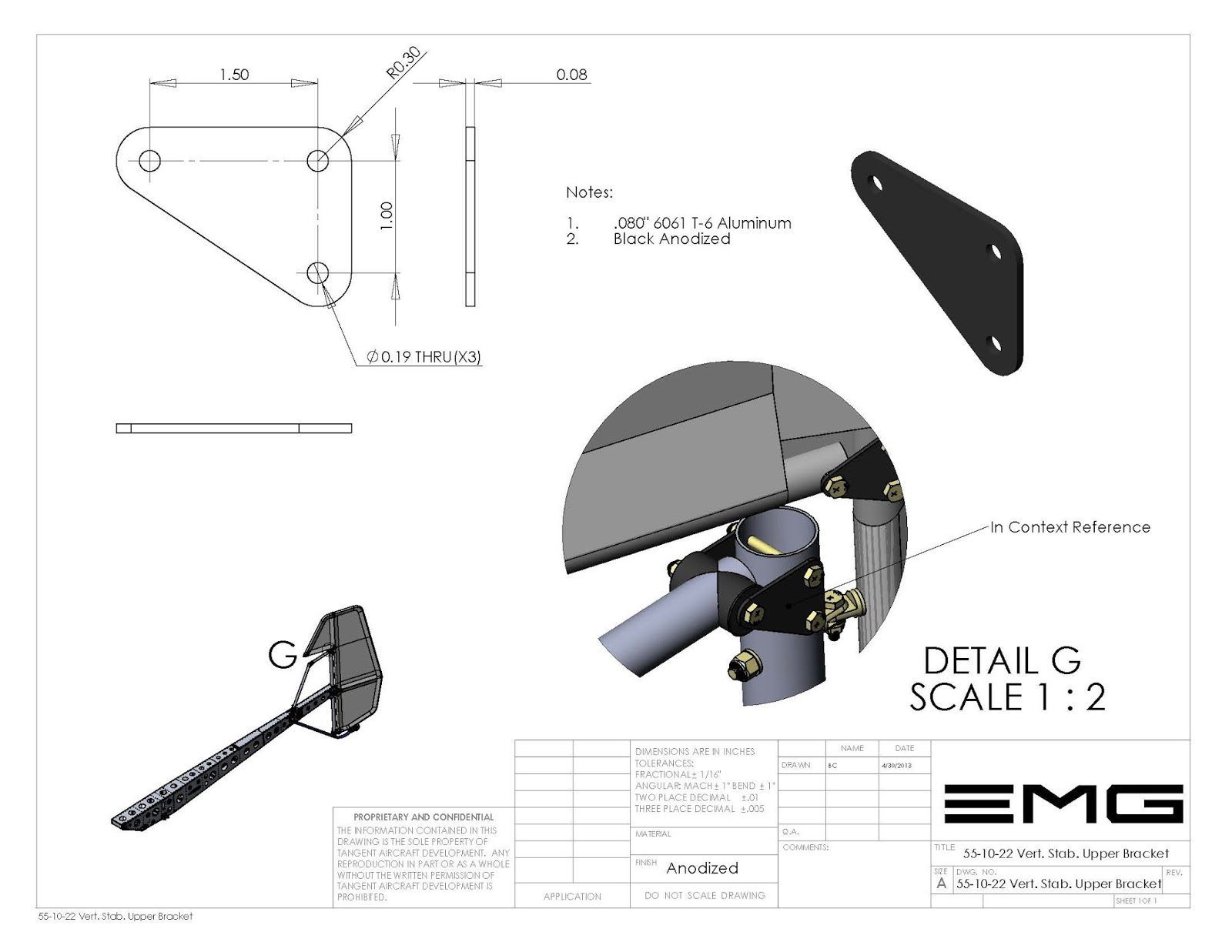

55-10-22 Vertical Stabilizer Upper Bracket
