The 1st fuselage welding fixture kits begin shipping.
4-17-2014

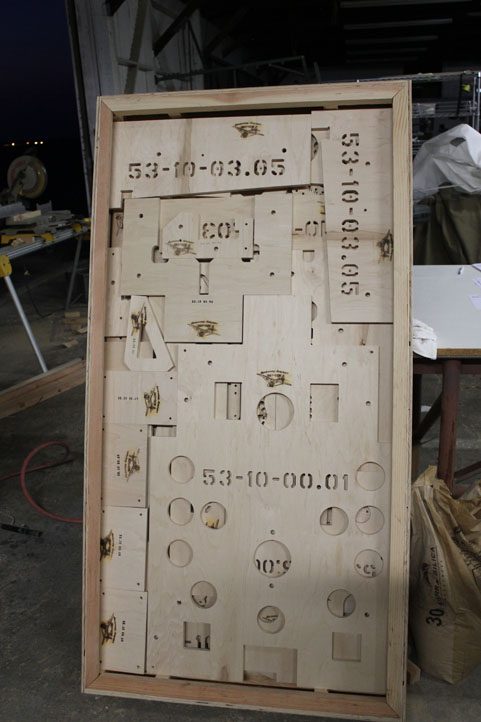

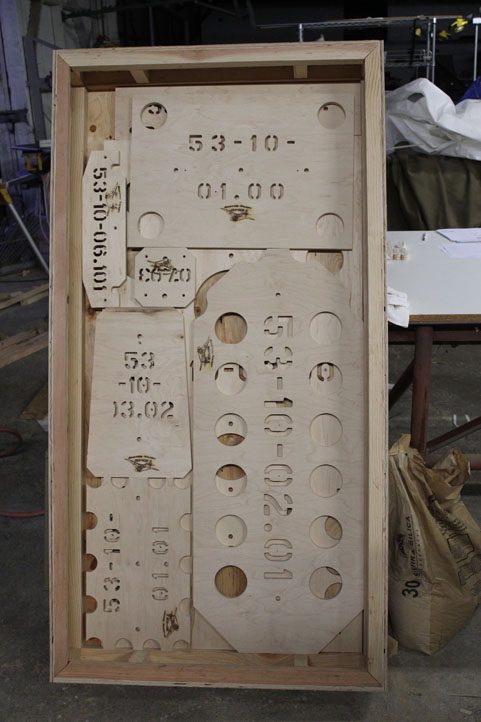

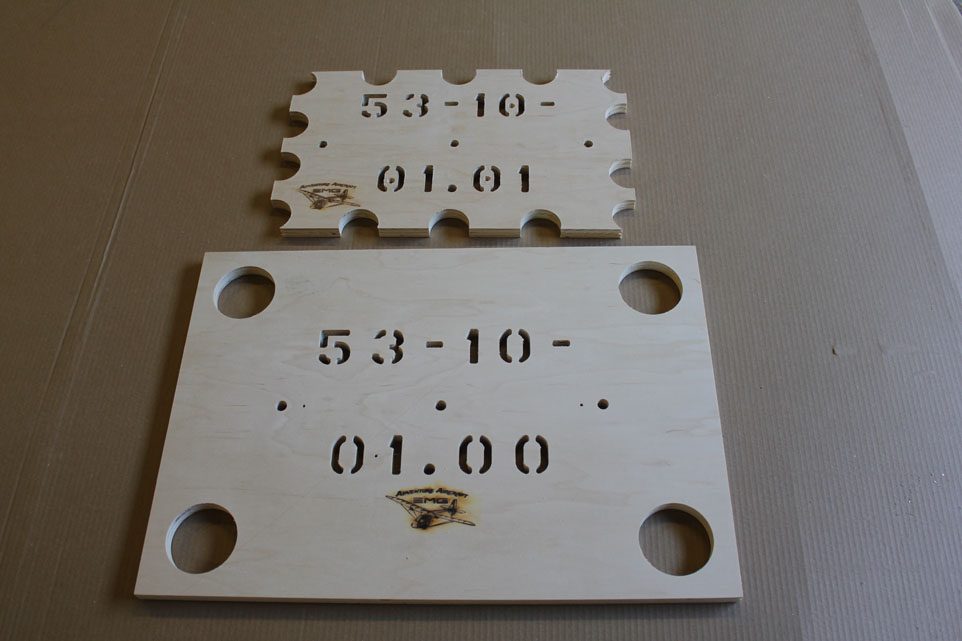

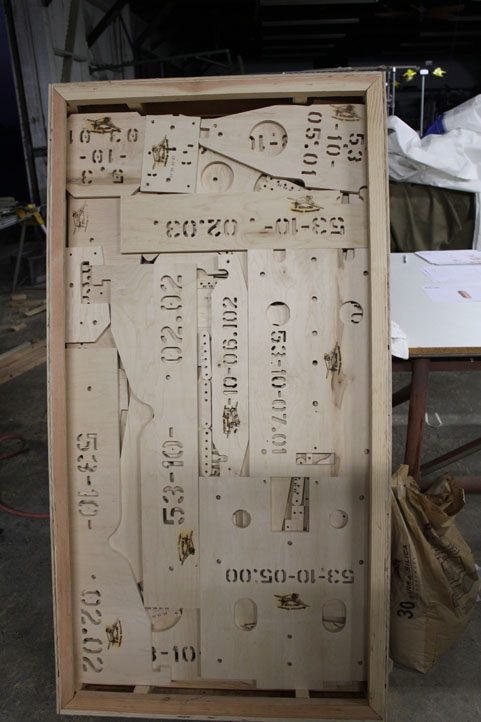

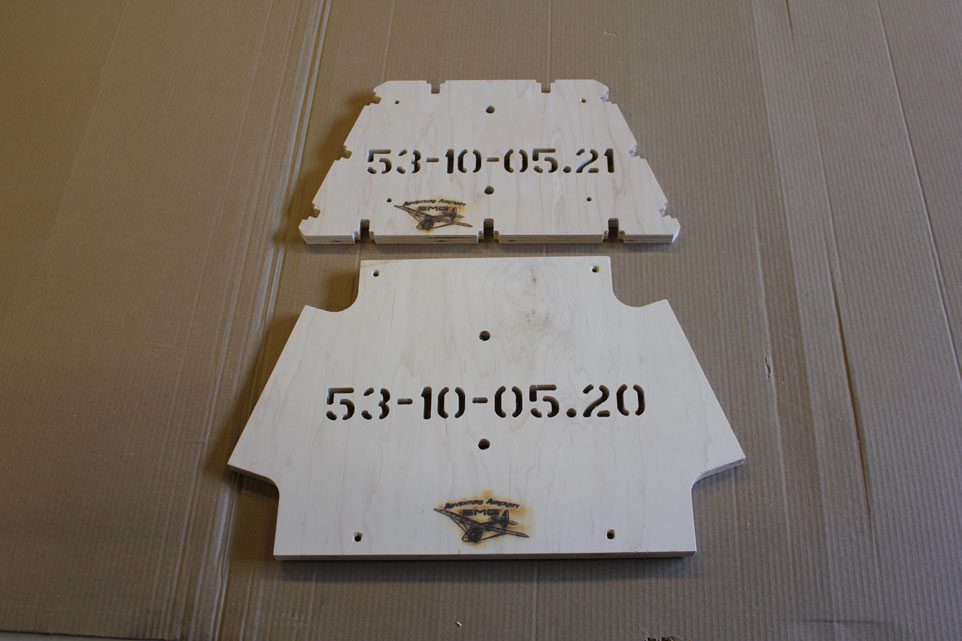

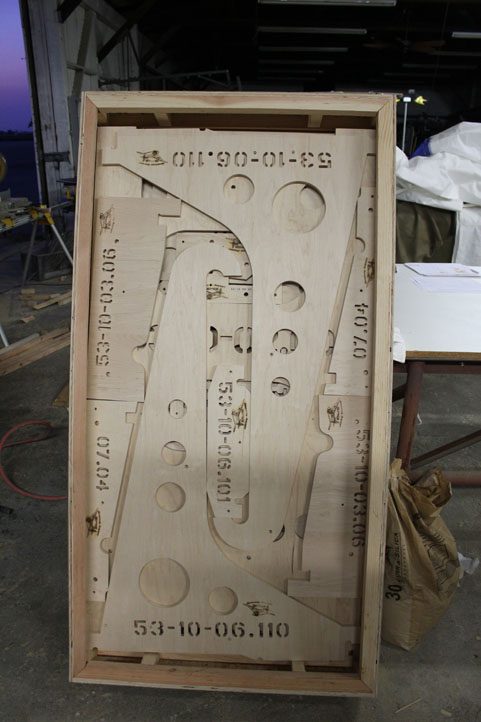

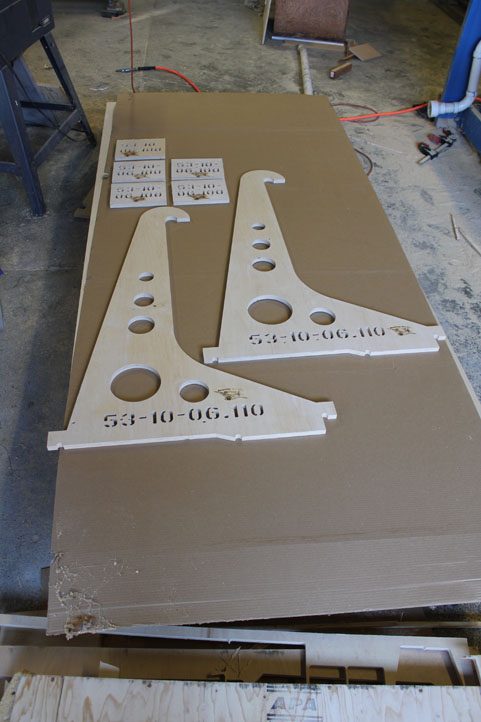

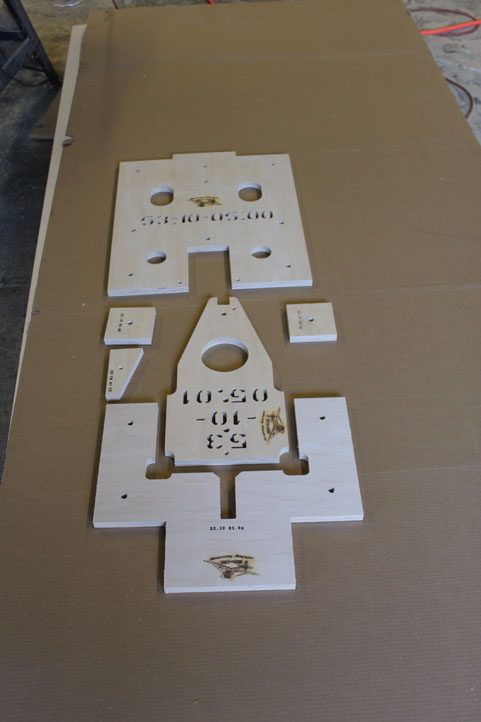

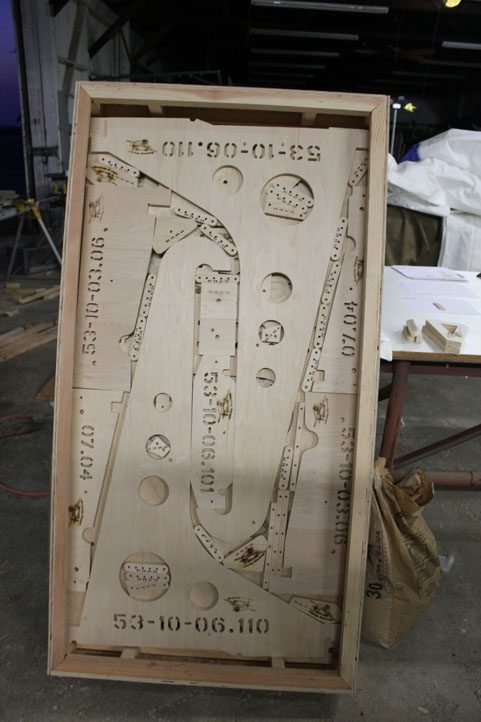

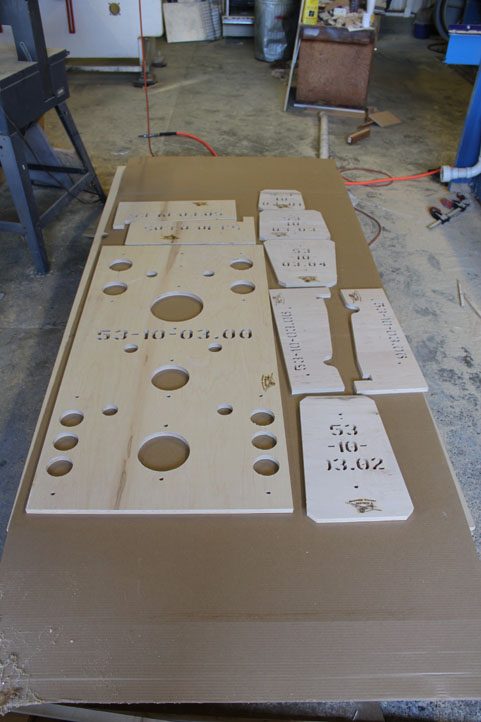

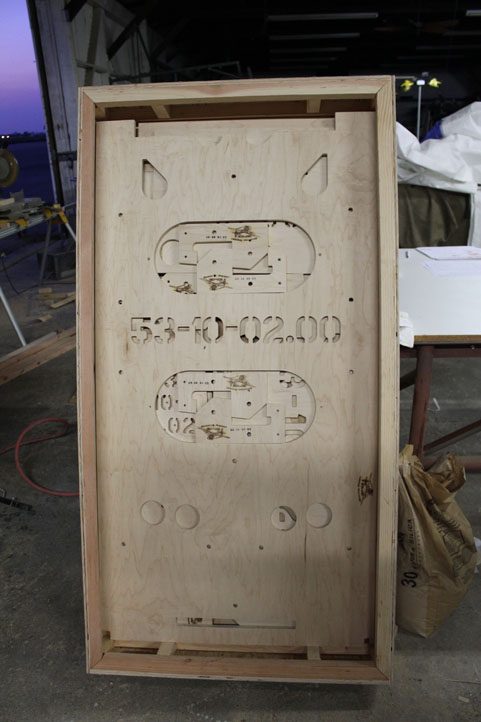

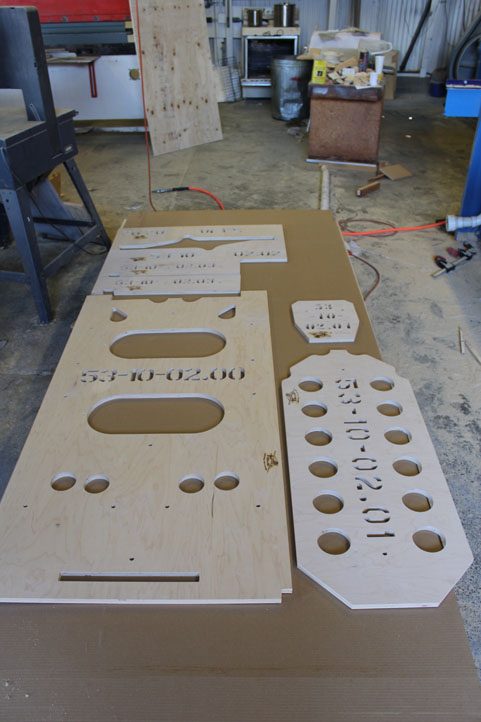

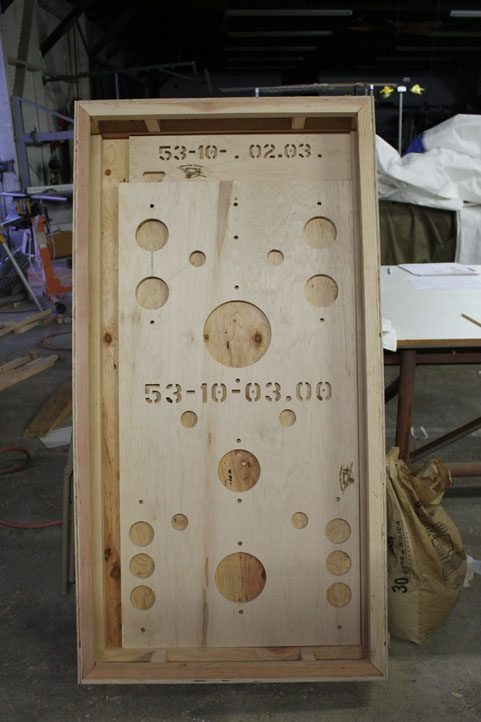

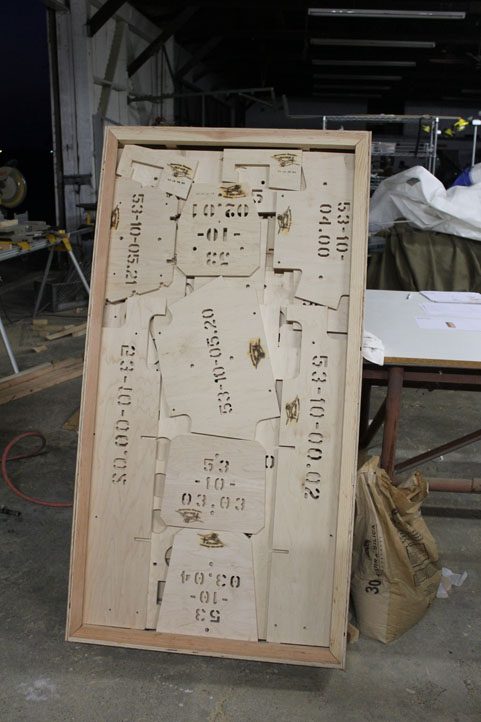

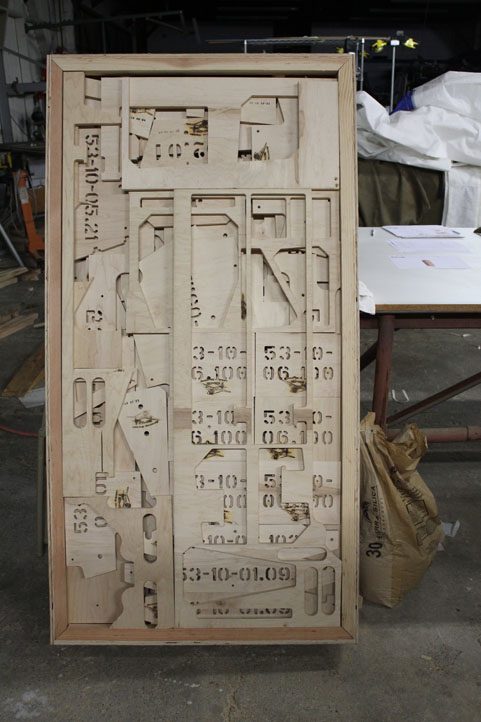

In the pictures below we see some examples of the fixtures laid out for each segment of the welding process. During the organizing process we made sure that each segment of the welding fixture was complete before we boxed it.

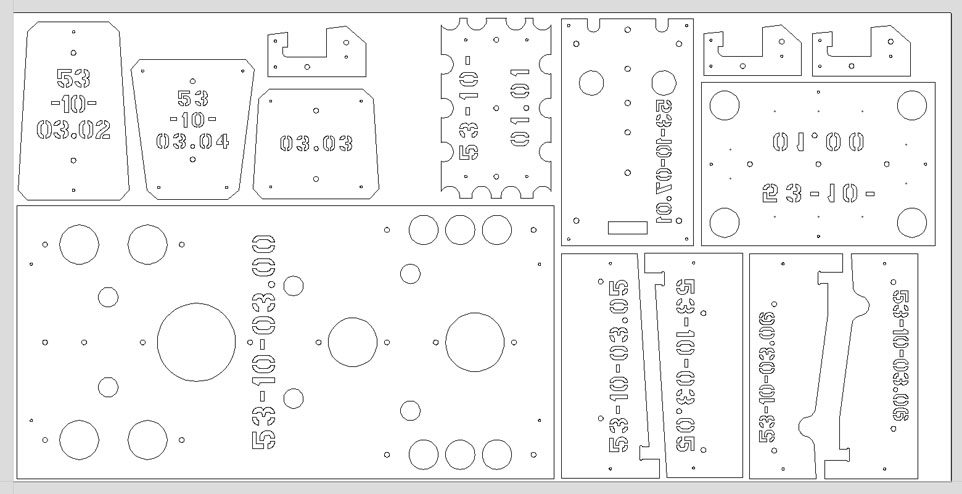

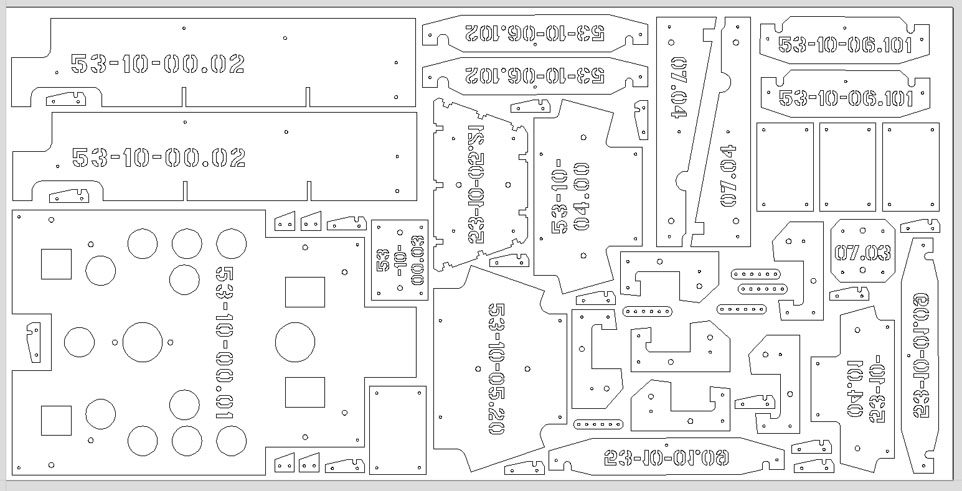

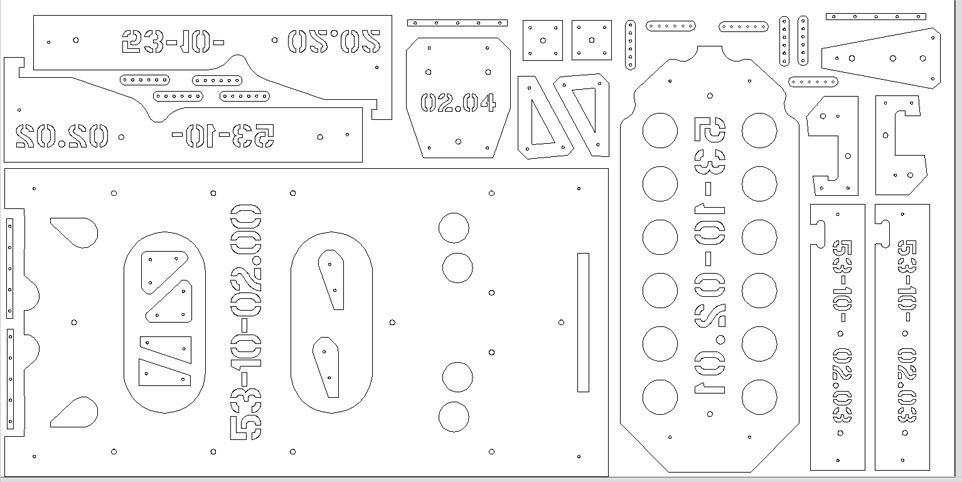

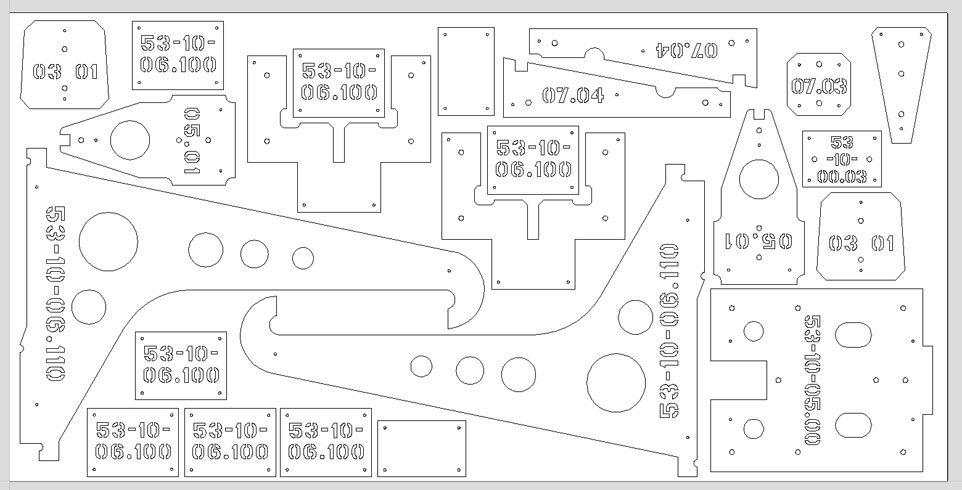

In the diagram below are all of the DXF files laid out on(4) 4 x 8 sheets of plywood as we would machine the components. These DXF files are also available for download which may be a much more cost-effective way to manufacture a set of fixtures for those individuals that are overseas or far enough away making the shipping costs of the rental fixtures nonviable.
